Pioneer TS-W312D4 12" Champion Series 1600w DVC Subwoofer

"THE CHAMPION HAS RETURNED"

PIONEER'S LATEST "CHAMPION" SERIES SUB-WOOFERS ARE HERE. THE TS-W312D4 IS DESIGNED TO TAKE THE "CHAMPION" SERIES NAME TO THE NEXT LEVEL WITH A RANGE OF IMPROVEMENTS.

WITH A LIGHT WEIGHT/HIGH RIGIDITY CONE DESIGN, DUAL LAYER HYBRID SURROUND, LARGE POWERFUL MOTOR ASSEMBLY AND ENCLOSED BASKET STRUCTURE, THE NEW "CHAMPION" SERIES SUB-WOOFERS NOT ONLY LOOK GOOD BUT WILL PERFORM EVEN BETTER!

MATCH WITH PIONEER'S GM-D SERIES AMPLIFIERS FOR AN IMPRESSIVE IN CAR EXPERIENCE!

RIGID CONE CONSTRUCTION

COMBINING A LARGE RIGID CENTRE CAP AND LIGHTWEIGHT HIGH RIGIDITY CONE STRUCTURE IMPROVES OUTPUT PERFORMANCE AND REDUCES LOSS. IMPROVED DUAL LAYER (ELASTIC POLYMER & FIBRE) HYBRID SURROUND PROVIDES A LIGHTER AND MORE DURABLE SURROUND THAN TRADITIONAL RUBBER COMPOUNDS.

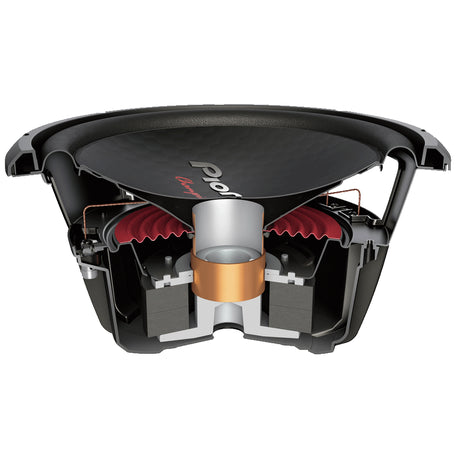

POWERFUL MOTOR ASSEMBLY

COMBINING A DOUBLE STACKED 90OZ MAGNET (26% BIGGER THAN OUR PREVIOUS MODEL AND SOME OF THE HEAVIEST IN IT'S CLASS) WITH A LONGER VOICE COIL DESIGN, THE "CHAMPION" SERIES SUB-WOOFERS ARE DESIGNED FOR HIGH POWER HANDLING AND ENDURANCE!

"Champion" Series 12 Subwoofer with Dual 4 Ohm Voice Coil

1,600w Max (500w Nom)

High rigidity (IMPP) composite seamless cone construction with honeycomb design

Dual layer (elastic polymer & fibre) surround for a highly durable design.

Massive 90 oz double stacked magnet and long voice coil with aluminium bobbin for increased bass and improved heat-dispersion.

GENERAL

SIZE- 12"

CONTINOUS POWER HANDLING (RMS) - 500W

MAXIMUM PEAK POWER HANDLING - 1,600W

IMPEDANCE - DUAL 4OHMS

WOOFER COMPOSTITION - INJECTION MOLDED POLYPROPYLENE (IMPP) WITH HONEYCOMB DESIGN

MAGNET WEIGHT - 90OZ

MOUNTING DEPTH - 157MM

What's in the box

• 1 x Pioneer TS-W312D4 12″ Champion Series 1600w DVC Subwoofer
