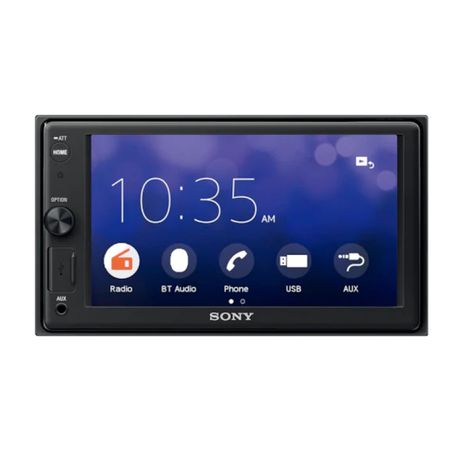

Sony XAV-1500 6.2 Inch Double Din Touchscreen Weblink Cast & Bluetooth

Connect your smartphone with WebLink Cast for screen mirroring and hear rich sound from the powerful 4 x 55 W amplification and EXTRA BASS boost. The anti-glare 6.2” (15.7cm) touchscreen wakes up2 soon after turning on the ignition and gives you intuitive control over your music, making phone calls, and much more.

General Features:
- Output Power 4 x 55W
- Pre-Out x 3 Pre (Front / Rear / Sub x 1)
- AUX-IN
- Rear View Camera In
- USB (Front x 1)
- Firmware Upgradeability
- Dynamic Stage Organiser (DSO)
- Equaliser 10-band Graphic Equalizer
- EXTRA BASS (Off / 1 / 2)
- Connectivity

Bluetooth:
Tuner Features

Preset FM18 / AM12
Auto Memory BTM
RDS / EON (RDS)
Bluetooth Profile

HFP (1.6)
A2DP (1.3)
AVRCP (1.3)
PBAP (1.1)

Bluetooth Features:
Speed Dial (6 memories)
Recent Calls (# OF)
Last Dialed Call (select from the dialed call history)
Phonebook Access via PBAP
Alphabetical Phonebook Sorting
Ring Volume Level Control
Call Volume Level Control
External Microphone Supplied
Battery Reminder
Signal Strength Indication
Bluetooth Audio Features

Audio Codec (Bluetooth Audio) SBC / AAC
Pause (Bluetooth Audio)
CUE / REV
Track +/-
Group (Folder) +/-
Audio Level Adjustment -6dB to +6dB
Repeat Control (Audio Device Side)
Shuffle Control (Audio Device Side)
META Data Indication
Panel Design

Black Panel Surface Finish Colour
Key Illumination (White)
Monitor (AVC)

LCD Type TFT Active Matrix
Screen Aspect 16: 9
Screen Size Diagonal 6.2 inch
Screen Size (W X H) 137.52 x 77.232 (mm)
Resolution (DOT) 800 x 480
Dimmer function
Contrast Ratio 600
Brightness 400cd / m2
Display Panel

Key Illumination Initial (White)
Dimmer Adjust
User Interface

Touch Panel Resistive + AG (Not Multi-Touch Compatible)
Gesture Command
Parking Control
Parking Line Adjust
Aspect Ratio Select
Rear View Camera-In Marker Setting
USB Mass Storage Device Control Feature

USB Device Control (Repeat) TRACK / FOLDER / DRIVE
USB Device Control (Shuffle) OFF / FOLDER / DEVICE
USB Device Control (Pause)
USB Device Control (Resume Play)
USB Device Control (Audio Codec) PCM / MP3 / WMA / AAC / FLAC
USB Device Control (Audio Playable File Extension) .wav / .mp3 / .wma / .m4a / .flac
USB Device Control (Video Codec) MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
USB Device Control (Video Playable File Extension) .mp4 / .wmv / .mkv
Multi-Language

Menu - Caution - ID3 TAG: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic
What's in the Box

Fitting Frame
Collar (hard type)
ISO connector
Instruction Manual
Warranty Card
Size & Weight

Dimensions: (W X H X D) 178x100x141mm
Weight: 0.9kg

What's in the box

• 1 x Head Unit
